XGJ560 90KW 1-1.5 Ton/H Vertical Ring Die Biomass Fuel Rice Husk Sawdust Pellet Press
Introduction for sawdust pellet press:
1. Main characteristics:
1) Vertical feeding, directly in place.
2) Die is static and rollers are rotary; materials are evenly distributed around because of centrifugal force.
3) Double-layer die. Two layers both can be used independently so the machine reduces the cost; What’s more, two layers of the die also can be used at the same time, in this way, the efficiency has been improved greatly,high capacity and save energy.
4) One die with two different apertures. The pellets may have different specifications.
5) Macroporous die; wire joining circular tube; increasing travel; improving density.
6) Ring die and vertical structure are good for cooling the pelletizing room.
7) Independent and frequency conversion discharge device can ensure the rate of pellet formation.
2. Rice husk pellet mill is vertical feeding for ring die and it is mainly used for difficult molding materials with low adhesion rate,
for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.
3. Rice husk pellet mill can make feed pellets, fuel pellets and fertilizer pellets, be used in feed mill, wood processing plants, fuel plants,
fertilizer plants, chemical plants etc. Since it requires less investment and yield quicker result and that no risk,Vertial Ring-die Wood Pellet Machine for sale is an ideal dense compression molding equipment.
4. The rice husk pellet mill have been sold to many different European and Asian countries, such as, Bulgaria, Poland, Ruassia,Indonesia, India, Malaysia, etc
Mainly Parameters for sawdust pellet press:
| Model | Power (kw) | Capacity for wood pellets(kgs/h) | Weight of the machine(kgs) | Dimension of the machine (mm) |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ560P | 132+1.5+0.37+1.5 | 1500-2000 | 4600 | 2600x1250x1600 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| XGJ850P | 220+3+0.37(0.55)+2.2 | 2500-3500 | 9600 | 2600x1600x1950 |

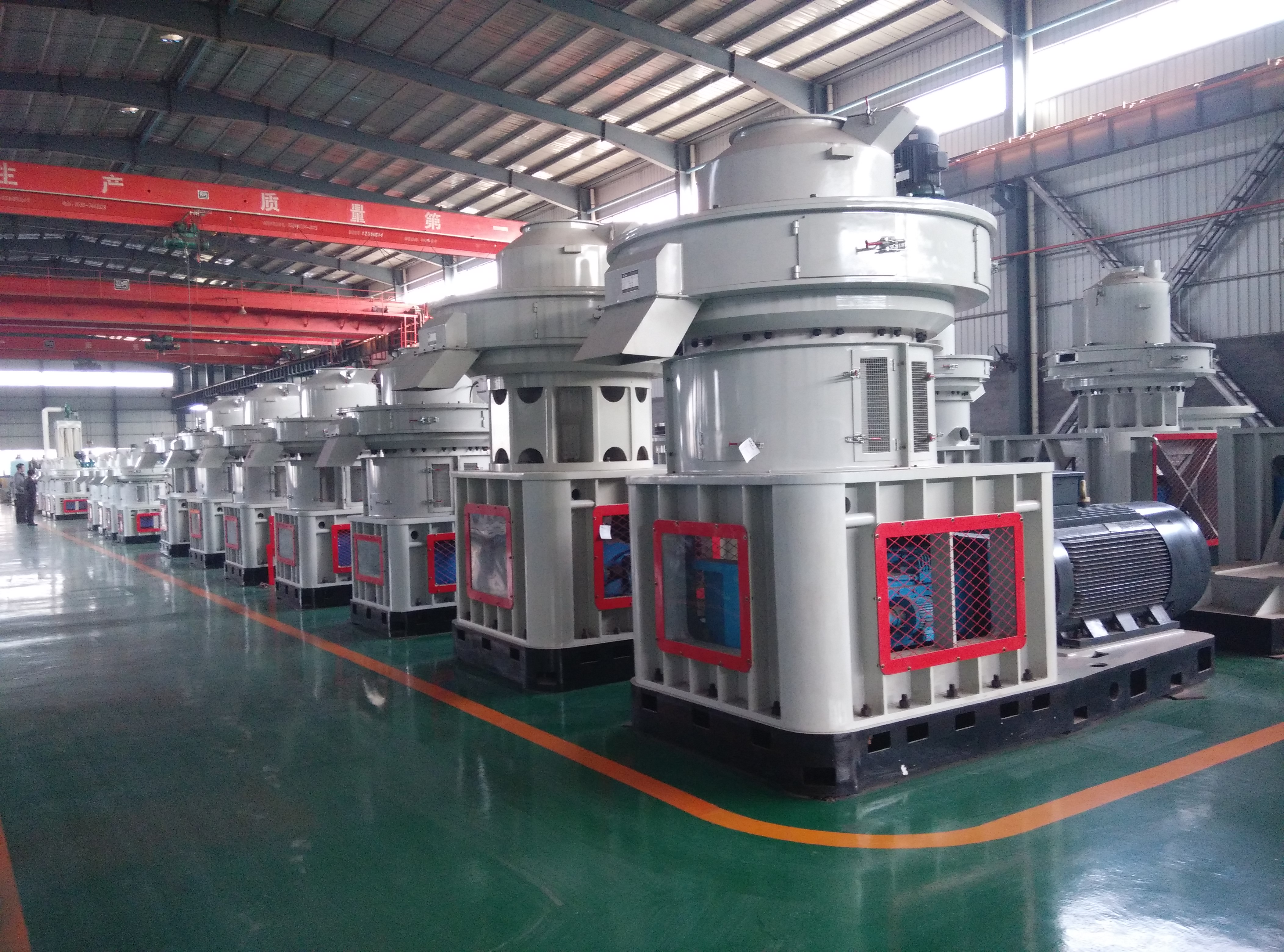

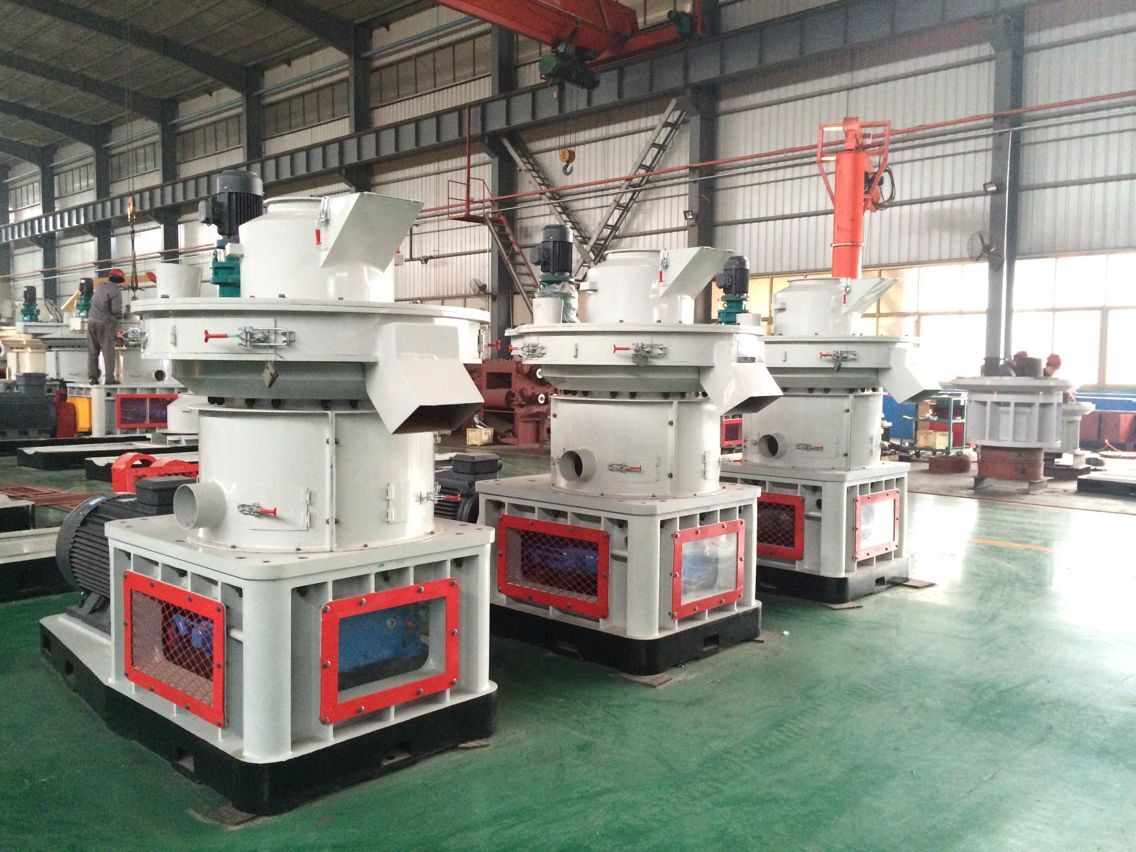

Photos of sawdust pellet press:

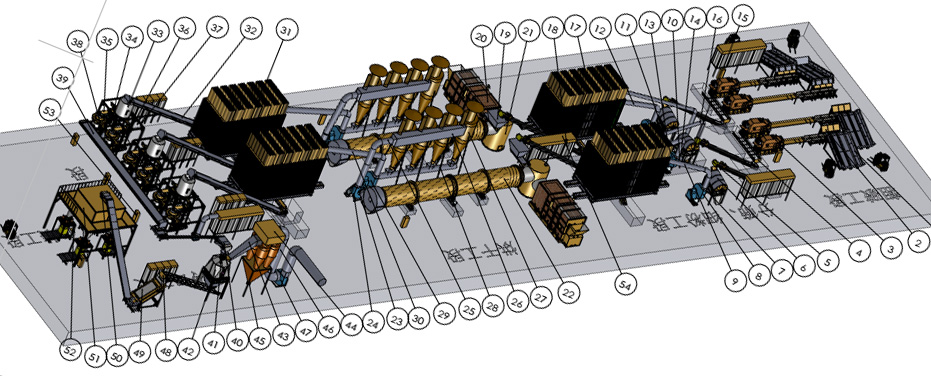

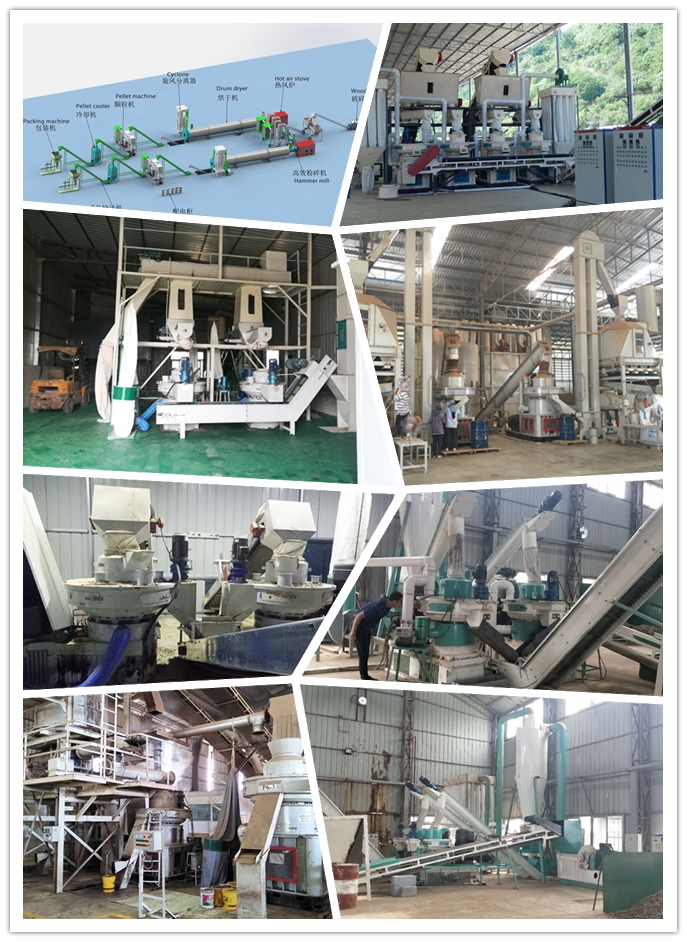

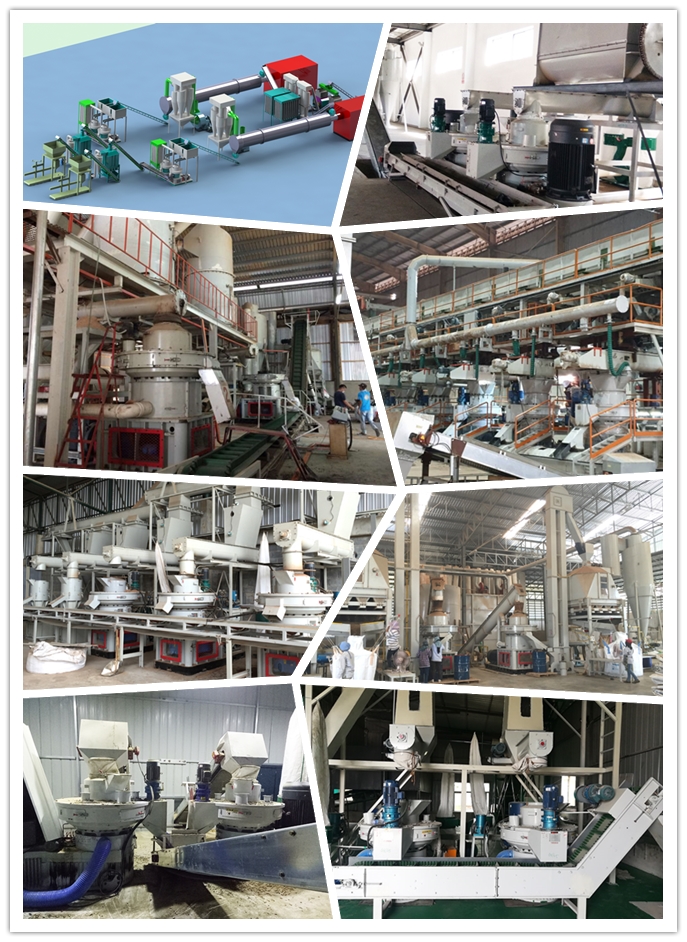

Sucessful Case for sawdust pellet press:
We have installed many complete sawdust pellet press line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....
Customers Visiting:
Welcome you visiting our company for more deply communication about the alfalfa pellet machine.
There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about our biomass pellet mill and our company.
